King SeriesCMM

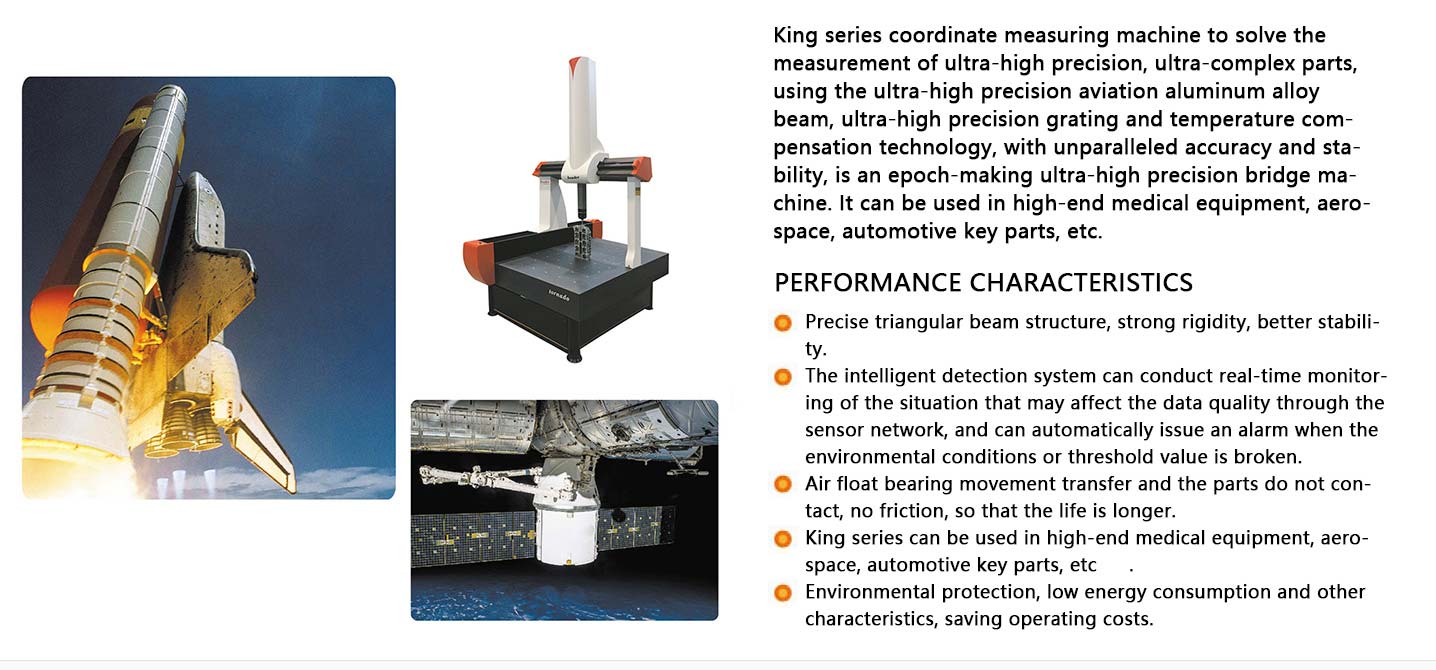

King series coordinate measuring machine to solve the measurement of ultra-high precision, ultra-complex parts, using the ultra-high precision aviation aluminum alloy beam, ultra-high precision grating and temperature compensation technology, with unparalleled accuracy and stability, is an epoch-making ultra-high precision bridge machine. It can be used in high-end medical equipment, aerospace, automotive key parts, etc.

MODEL	STROKES			OVERALL SIZE			WORK ENVELOPE			WEIGHT	PART WEIGHT	3D Max Speed	3D Max Accelerate Speed
	X	Y	Z	Lx	Ly	Lz	Wx	Wy	Wz	WEIGHT	PART WEIGHT	3D Max Speed	3D Max Accelerate Speed
	mm	mm	mm	mm	mm	mm	mm	mm	mm	kg	kg	（mm/s）	（mm/s）
NCK686	600	800	600	1290	1965	2790	770	1400	850	1560	700	800	1900
NCK6106	600	1000	600	1290	2165	2790	770	1600	850	1700	700	800	1900
NCK8106	800	1000	600	1490	2165	2790	970	1600	850	1970	1000	800	1900
NCK8126	800	1200	600	1490	2365	2790	970	1800	850	2210	1000	580	1900
NCK8156	800	1500	600	1490	2665	2790	970	2100	850	2550	1000	580	1900
NCK9128	900	1200	600	1590	2365	3200	1070	1810	1040	2340	1800	580	1900
NCK10126	1000	1200	800	1690	2365	2790	1170	1810	850	2520	1800	580	1900
NCK10128	1000	1200	800	1690	2365	3200	1170	1810	1040	2560	1800	580	1900
NCK10158	1000	1500	800	1690	2665	3200	1170	2110	1040	2850	1800	580	1900
NCK121510	1200	1500	1000	1900	2680	3330	1390	2200	1200	3370	2000	580	1500
