Navigator Series CMM

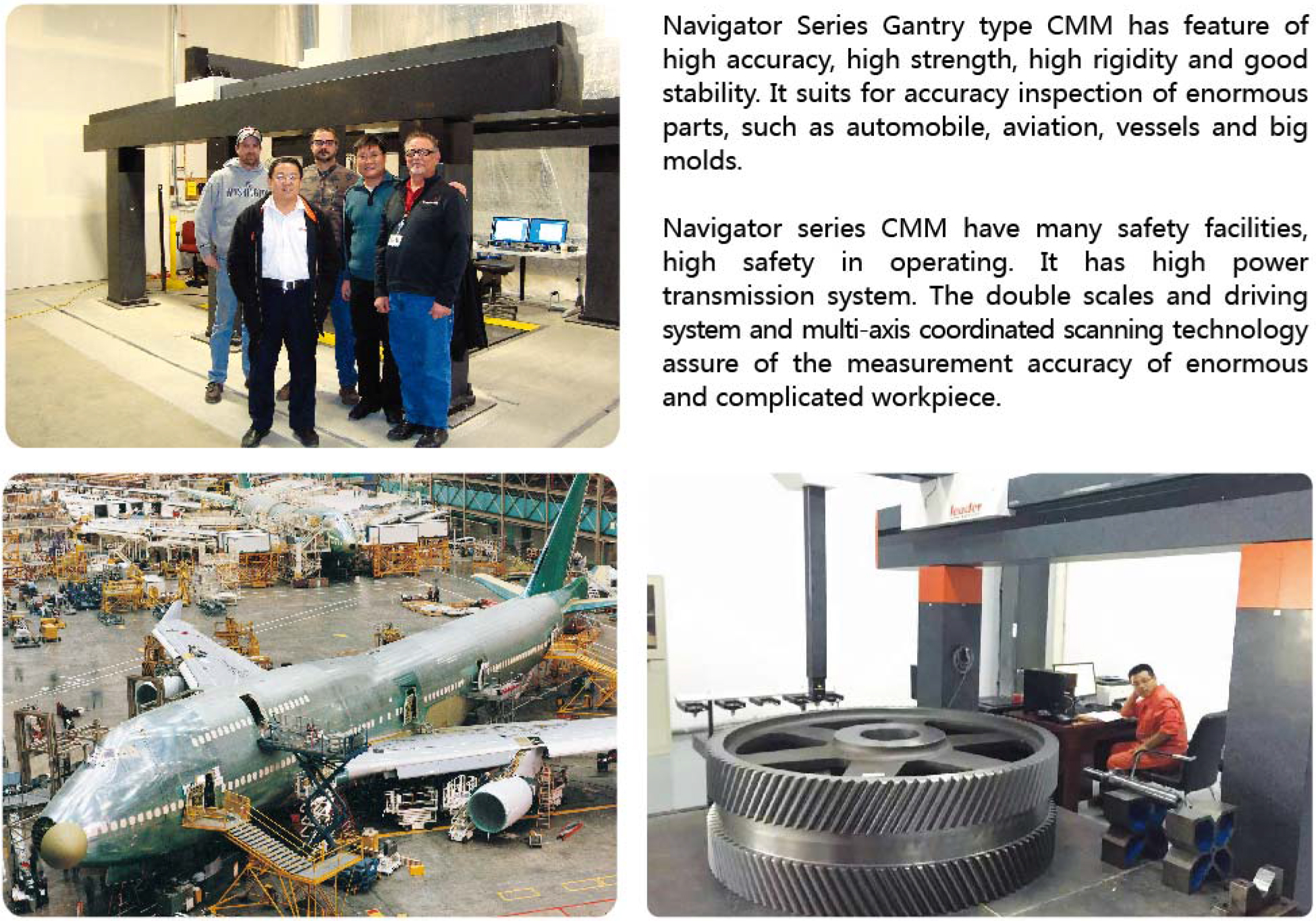

Navigator Series Gantry type CMM has feature of high accuracy, high strength, high rigidity and good stability. It suits for accuracy inspection of enormous parts, such as automobile, aviation, vessels and big molds.

Navigator series CMM have many safety facilities, high safety in operating. It has high power transmission system. The double scales and driving system and multi-axis coordinated scanning technology assure of the measurement accuracy of enormous and complicated workpiece.

MODEL	STROKES			OVERALL SIZE			WORK ENVELOPE			WEIGHT
	X	Y	Z	Lx	Ly	Lz	Wx	Wy	Wz	WEIGHT
	mm	mm	mm	mm	mm	mm	mm	mm	mm	kg
NCG203015	2000	3000	1500	3490	4770	4370	2350	3500	1690	9800
NCG204015	2000	4000	1500	3490	5770	4370	2350	4500	1690	10700
NCG205010	2000	5000	1500	3490	6770	4370	2350	5500	1690	13490
NCG20XX15	2000	xx	1500	3490	xx	4370	2350	xx	1690	xx
NCG253015	2500	3000	1500	3990	4700	4370	2850	3500	1690	9870
NCG254015	2500	4000	1500	3990	5770	4370	2850	4500	1690	10800
NCG255015	2500	5000	1500	3990	6770	4370	2850	5500	1690	13560
NCG25XX15	2500	xx	1500	3990	xx	4370	2850	xx	1690	xx
NCG203020	2000	3000	2000	3490	4770	5370	2350	3500	2100	9810
NCG20XX20	2000	xx	2000	3490	xx	5370	2350	xx	2100	xx
NCG255018	2500	5000	1800	3990	6770	4970	2850	5500	1950	14200
NCG256018	2500	6000	1800	3990	7770	4970	2850	6500	1950	15400
NCG253020	2500	3000	2000	3990	4770	5370	2850	3500	2100	10600
NCG25XX20	2500	xx	2000	3990	xx	5370	2850	xx	2100	xx
NCG306020	3000	6000	2000	4900	7770	5370	3350	6500	2100	16200
NCG30XX20	3000	xx	2000	4900	xx	5370	3350	xx	2100	xx
